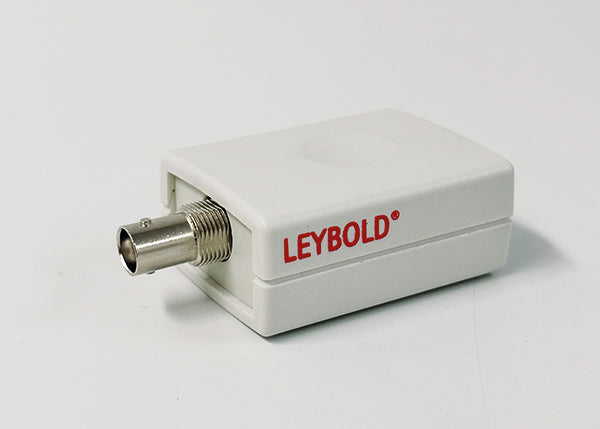

Leybold pA Sensor S

For measuring small currents (e.g. photocurrent) with CASSY.
This sensor is no longer supported by CASSY Lab 1. CASSY Lab 2 is available as an upgrade

• Measuring ranges: ±100/±300 pA, ±1/±3/±10/±30/±100/±300 nA, ±1/±3/±10 µA
• Measuring accuracy: 2 %
• Offset error: < 0.5 %
• Input resistance: 100 kΩ
• Cut-off frequency: approx. 1 Hz
• Max. overvoltage: 100 V
• Connection: BNC socket
• Dimensions: 50 mm x 25 mm x 60 mm
• Weight: 0.1 kg

INSTRUCTIONS FOR USE CLICK HERE
